Xline Plus Collections: Linear Continuous Lighting System

Xline™ plus is aesthetic and minimalist, easier for, pendant installations. It's flexible and seamless continuous connection to build creative and innovative lighting system. Distinctively rectangular aluminum luminaire housing from extruded aluminum profile; No visible screws; Indirect output reflected from the ceiling provide a softer and ambient illumination.

Xline Plus provides both up/down(Direct/Indrect) light, and it's vaccum aluminum plating faceted louver with lens design minimized the glare. Suitable for VDUs workplace light according to DLC V5.0 Premium Requirements UGR <19. Available in 2 ft, 4 ft ,6 ft, 8 ft of length(other on request), with 110-277V and 1-10V dimming control. Equipped with Louver, , MicroPrism and Diffuser, shapes the lighting in your space with multiple distribution options of general lighting, asymmetric distribution for shelves and wall washer, bi-symmetric distribution for aisle lighting.

ApplicationsIdeal for offices, lobbies, conference rooms, libraries, classrooms, retail space, and many other applications


规格书下载
  • photo name
  • photo name
  • photo name

Features Highlight

. Seamless continuous & looping design

. Direct lighting, or Indirect & direct lighting

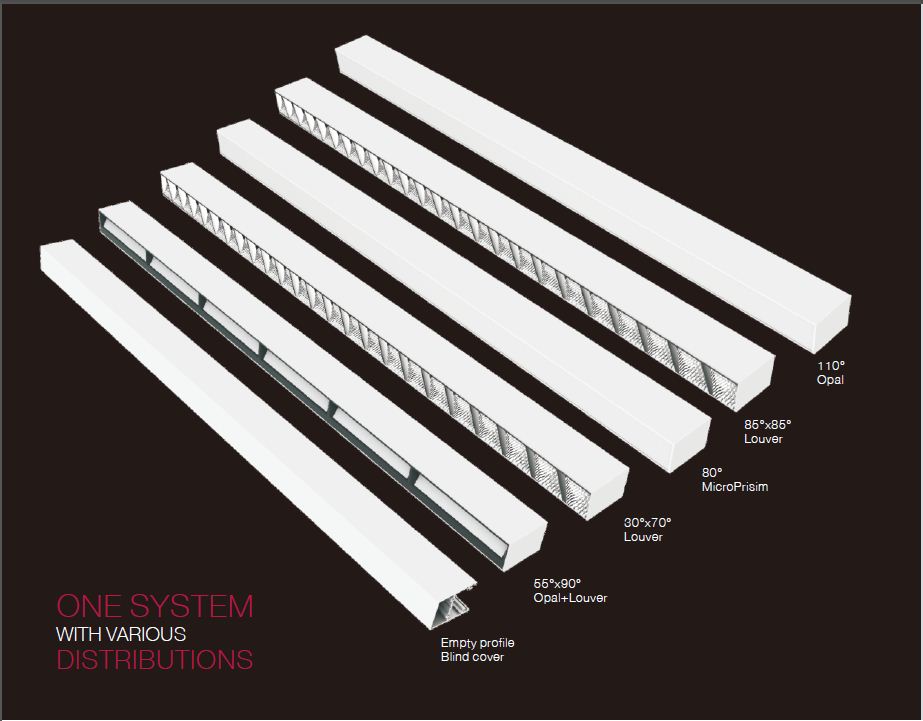

. Multiple lighting distributions for all kinds of lighting scheme, including general lighting, aisle lighting and wall washer

. Quick installation with pre-wires connectors

. Ultra-compact, aesthetic and minimalist, and no visible screws

. Low UGR of 19, or 22 according to DLC 5.0

. High Efficacy of 110LPW system efficacy

. Visual comfort with louver and advanced optical lens design cutoff the glare

. MircoPrism and diffuser optics make light output softer for fitness center or any other palace that people might look directly at the light emitting.

. Universal input voltage of 110-277V, 1-10V dimmable

. Flicker Free according to IEEE 1789, Title 24 and DLC


SPECIFICATION:

Product Code

KL-TR-049

Product Name

ETL Xline Plus LED Linear Luminaires 1-10V Dimmable

Input voltage

120-277V

Power

30W, 45W, 90W, others on request

Power factor

>0.95

Dimmable

1-10V

Dimming Mode

AM dimming

Flicker Free

Yes, less than 3% flicker percentage according to IEEE 1789

Lumen Flux

3000lm(30W), 5000lm(45W), 10000lm(90W)

Beam Angle

30°x70°, 85°x85°, 110°; Asymmetric(on request) 25°x90°, 55°x90°

CCT Optial

2700K/3000K/4000K/5000K

CRI Optial

Ra 82, Ra90 on request

Dimension

Length:2ft, 4ft, 5ft, 6ft, 8ft option

W: 1.8"

H: 2 9/16"

Finish Color

Black, White, others on request

Warranty(years

5

Lifespan(hrs)

>50,000

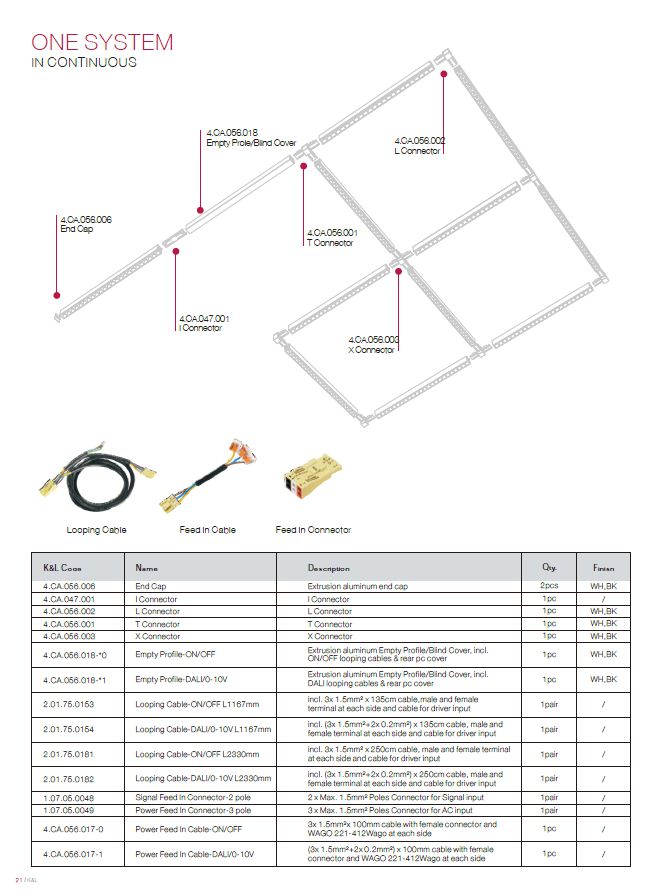

Accessories

Surface mounted kits; pendant kit, track mounted kits

Feedin cable, I L T X connectors

Empty profile
