FEATURES:
• Come with standard and Dim-to-warm versions using different LED chips.
• Offered with modular design of different led engines, trims and led drivers for suiting the ideal lighting design
• Come with different optical lens of 24°,38°and 60°for meeting the needs of various types of lighting applications
• Triac/ELV dimming solution utilizing brightness control of 100% to 10%
• Recessed damp location and air-tight downlights, suitable for use in insulated ceilings. (Optional)
• Provided with good color rendering of up to 90 for excellent illumination of awesome color quality
• ETL approved: UL 2108 & 1958; CSA C22.2#9.0:1996 & C22.2 No. 250.0
• Designed with heat sink of anodized extrusion aluminum material, essential for heat dissipation and improving life expectancy of lights.
• Trim colour: Black / While / Sliver / Brush Nickel
SPECIFICATION:
| Product Code | R3-DL075-06-IC |
| Produce Name | 6W 450LM Saturn LED downlight Type IC |
| Input Voltage | 120V |
| Power | 6W |
| Power Factor | 0.9 |
| Dimmable | Triac / ELV |
| Lumen Flux | 450lm |
| Beam Angle | 24°，38°，60°(Interchangeable) |
| CCT Optial | 2700k/3000k/3500K/4000k/5000k, DIM-to-Warm(Optional) |
| CRI Optial | CRI82 (CRI 90-95 available) |
| Type IC | Yes |
| Damp Location | Yes |
| Airtight | Depend on optional trims |
| Dimentiosn | 2"x1 13/16" x2" |
| Replacement | 50W HALOGEN LAMP |
OFFERING FLEXIBILITY OF UTILIZING DIM TO WARM LED TECHNOLOGY(OPTIONAL)

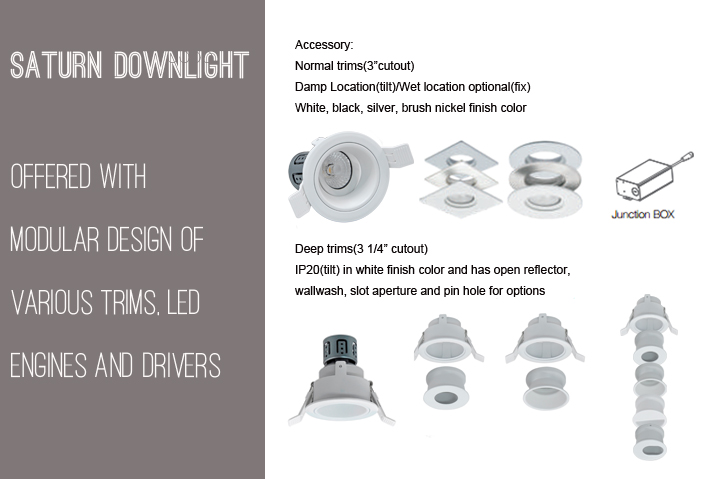

MODULAR DESIGN OF VARIOUS LIGHTING PARTS

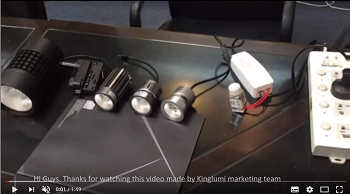

VIDEO REVIEW:
Saturn LED Downlights video in youtube
