Quick connection DALI pluggable drivers with WINSTA® | LEDGEAR®

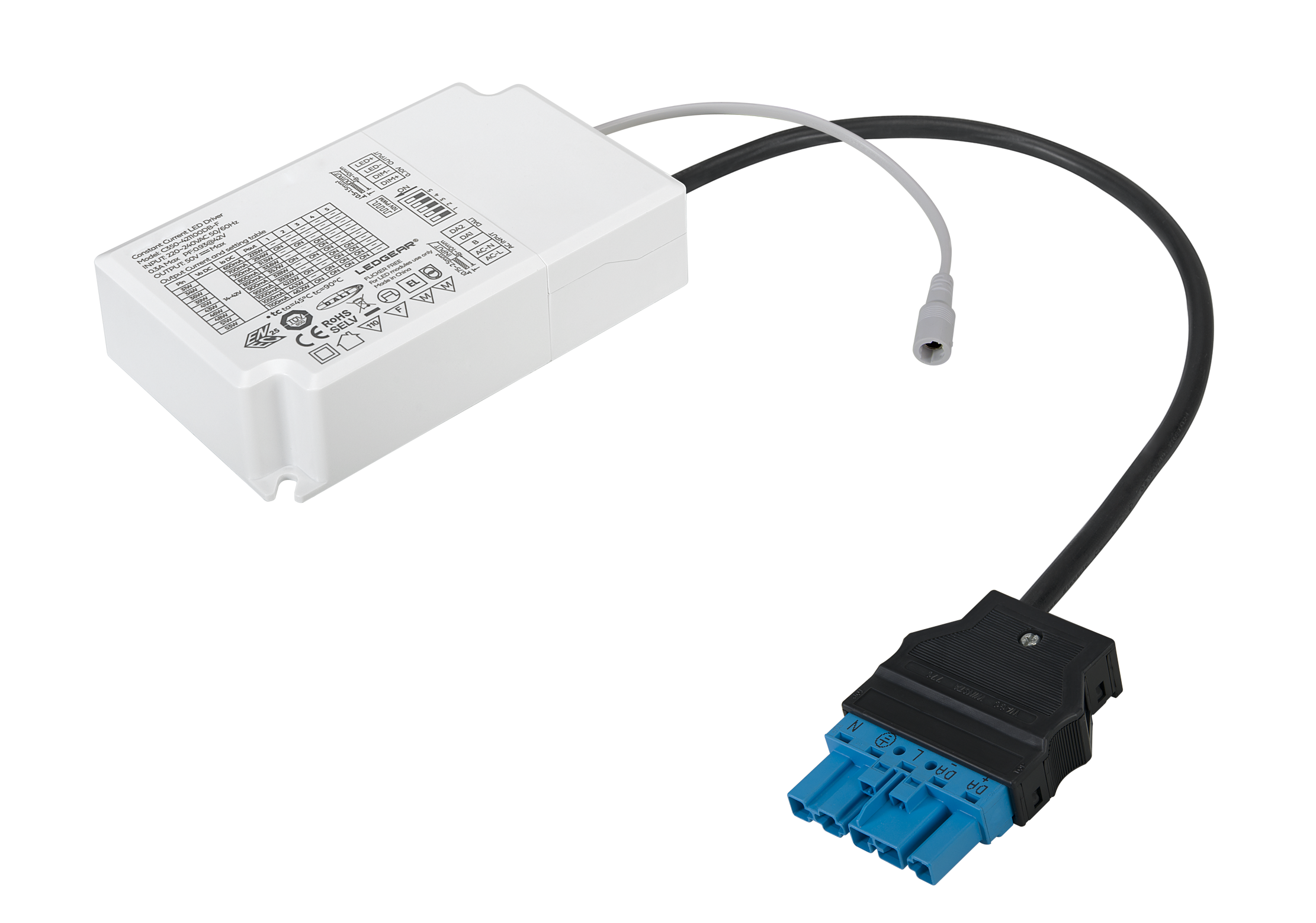

DALI-2 LED ECGs equipped with quick connection system, which is used to simplify the installation of luminaires. The main benefit of quick connection systems is the reduction in installation times for large or continuous lighting systems. The ECGs is already with pre-assembled Wago WINSTA® MIDI 5 Pole Cable assembly Socket to Free End for DALI. Halogen free 5 x 1.0mm² L 500mm VDE approved cable. Black Cable, Blue Socket. Marked DA+, DA-, L, E, N. It is possible to connect the chassis connectors to the primary side.

The DALI ECGs designed with DIP switches with high flexibility to adjust the output currents and work with most of the indoor lighting covering from 8W to 45W for indoor lighting, The driver pre-assembled plug-socket save lots of time and effort on a site’s actual wiring work without any tool. Variable output voltage of 14-40V with constant current output. These wide operating windows and easy wiring for LED modules makes it super flexibility and warehouse inventory reduction.

Application

•  For panel light, troffer and area light in office and education application

•  For spot light and downlight in retail and hospitality applications


规格书下载
  • photo name
  • photo name

Features

  DALI-2 Dimmable, compatible with both DALI-2/DALI-1 application controller

  Constant current output independent led driver

  Adjustable output current by dip switches

  Easy and fast installation thanks for the pluggable socket

  Built--in with permanent memory for DALI dimming, 100,000 times memory

  Flicker Free(less than 3% flicker percentage)

  Reliable, Class II, SELV according EN 61347

  ENEC, CB, CE, SAA, C-tick approved

  ±5% output current accuracy(under maximum load)

  Built-in active PFC and passive NTC

  90°C Maximum case operation temperature(tc-point ¹)

  Operating temperature ¹: -20°C ~ +45°C, the humidity: 20% ~ 85%

  Over 60,000 hrs nominal lifespan at tc=60°C

  Five-year factory guarantee and lifetime technical support ¹

 “¹” Detailed data please refer to the " PARAMETERS" table .


Datasheet

MODEL

C328-42600DB-F

C350-421100DB-F

Output

Output voltage

14-42V

14-42V

Rated current

250, 300, 350, 400,   450, 500, 550, 600mA

(preselected 250mA)

650, 700, 750, 800,   850, 900, 950, 1000, 1050,1100mA

(preselected 650mA)

Maximum power

25.2W

46.2W

Current tolerance

±5%

±5%

Dimming Range

DALI, Push-DIM:1.5%-100%;   0-10V,10VPWM,Resistance:5%-100%

DALI, Push-DIM:1.5%-100%;   0-10V,10VPWM,Resistance:5%-100%

Ripple voltage ²

100Vp-p

180mVp-p

Ripple current

150mAp-p

220mAp-p

Line regulation

±1%

±1%

Load regulation

±3%

±3%

Flicker percentage ³

<3%

<3%

Starting time

<500mS

<500mS

Turn off time

<2.0S

<2.0S

Noise 4

<22dB

<22dB

1Input

Voltage

220-240V

220-240V

Frequency

Rated:50-60Hz,   0Hz;  Range:47-63Hz, 0Hz;

Power factor

≥0.9;   (Rated voltage input, rated current output conditions)

I-THD

≤15%

<15%

Efficiency

≥84%

≥86%

AC current

180mA   max.

300mA   max.

Inrush current

30A

35A

Inrush current time

35uS

50uS

Leakage current

<1mA

<1mA

ON/OFF switches cycle

>100,000

>100,000

Standby power

<0.5W

<0.5W

Protection

Over current

Constant   current limiting, recovers automatically after fault condition is removed

Over voltage

Shut   down output voltage, with auto-recovery or re-power on to recovery

Over temperature

Shut   down output voltage, recovers automatically after temperature goes down

Short circuit

Constant   current limiting, recovers automatically after fault condition is removed

Safety

&   EMC

Safety standards

EN61347-2-13;  Design refer to TUV EN60950-1, TUV   EN61347-1

Withstand voltage

I/P-O/P:3KVac    I/P-FG:1.5KVac       O/P-FG500Vdc

Isolation resistance

I/P-O/P,   I/P-FG, O/P-FG:100M Ohms/500Vdc/25/75%RH

EMC emission

EN55015B,   EN55022 Class B, EN61000-3-2, EN61000-3-3

EMC immunity

EN61000-4-2,   EN61547, EN55024, EN-61000-4-5

Surge   immunity Line-Earth: 2KV, L Line- N Line:1KV;

Environment

Ambient temperature range

-20°C ~ +45°C

-20°C   ~ +45°C

Max. case   temperature(tc)10

90°C

90°C

Relative humidity range

20% ~ 85%RH

20%   ~ 85%RH

Storage temperature range

-40°C ~ +80°C

-40°C   ~ +80°C
